Intelligent Man Overboard System!
(Recommended for boats 25 feet and under, see our 1stMate system for larger boats that require increased wireless range)
In a world where electronics surrounds us it’s almost incredible that the corded cut-off switch still exists: MOB+ is an electronically controlled, wireless cut-off switch which can be used on all boats. It has finally arrived, the cut-off switch which gives the user not only all the benefits of electronics but freedom and additional safety as well. We recommend using MOB+ on boats with size of 25 feet or less.
Your personal lifeguard
The corded kill switch is rarely used as it ties you to a very limited space onboard. With MOB+ Wireless Man Overboard System you regain freedom – without losing safety.
The xFOB is your personal lifeguard at sea. Being placed in the accompanying xBAND or xTAG (not included - please order xBand or xTag separately), the xFOB unit does not inhibit any movement or motion. Should you fall into the water the engine(s) will stop in just one second.
General information about the system
As you step aboard your boat, press the xFOB to connect to the xHUB. A green light and an audio signal will confirm the connection and the engine can be started. If you fall overboard the engine will be shut down, caused by the xFOB being under water or more than 50 feet from the xHUB. 6 seconds after shut down passengers can restart the engine to save the person in the water. When leaving the boat press the xFOB once to disconnect.
Up to four xFOB’s can be connected to the xHUB at once, with one unit acting as the captain’s stop unit, and the additional three as alarm units for passengers.

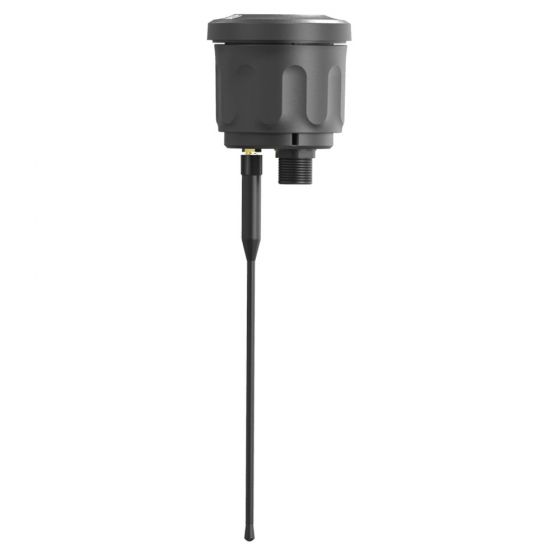

The MOB+ Basepack comes with the HUB, one FOB, antenna, wiring harness, and crimp connectors.
Universal Fit Design
We recognize that all boaters use their boats differently. The xFOB is designed to allow you to decide how to wear it. You can choose to wear it on your wrist, with the xBAND, or around your neck or clipped to you with the xTAG. This unique design allows you to decide how you want to use the MOB+ Wireless Man Overboard System.
Battery life time
The xFOB has up to 300 hours battery life time when connected.
Battery type: CR2032
Automatic timer function ensures the unit does not remain turned on should it be forgotten on the boat.
Installation
See support and installation for a quick installation guide which is available as a downloadable PDF and in-browser viewing.
Measurements and performance
| Weight | 10grams |
| Housing material | ASA / TPU / POM |
| Temperature range | Fro -15°C to 55°C |
| Voltage Source | Coin Cell Battery - 3V nominal |
| Power consumption | 0,3 µA in sleep (0,00033 W) 30 mA in active mode (0,098W) |
| Battery life | 300 hours continous usage |
Wireless performance
| Frequency area | 915 MHz FCC (US vers.) |
| RF signal (in) | 10 dBm max. |
| RF signal (out) | 10 dBm max. |
| 4D Antenna diversety |
Battery MOB Unit
| Battery type | CR2032 |
| Battery voltage | 3V lithium battery |
Certification US version (FCC)
| Radio - MOB Unit | R&TTE, EN 300 328, Maritime/CE |
| EMC - MOB Unit | R&TTE, IEC 60945, Maritime/CE |
| ABYC A-33 compliant |
Environment
| Immersion MOB Unit | IEC 60945, IP68, Martime/CE - 3 meters water resistant |
| RoHS (2002/95/EC) compliant materiales |
Safety
| Flammability - MOB Unit | IEC 60950 1&22, Martime/CE, UL94 |
Technical drawings
